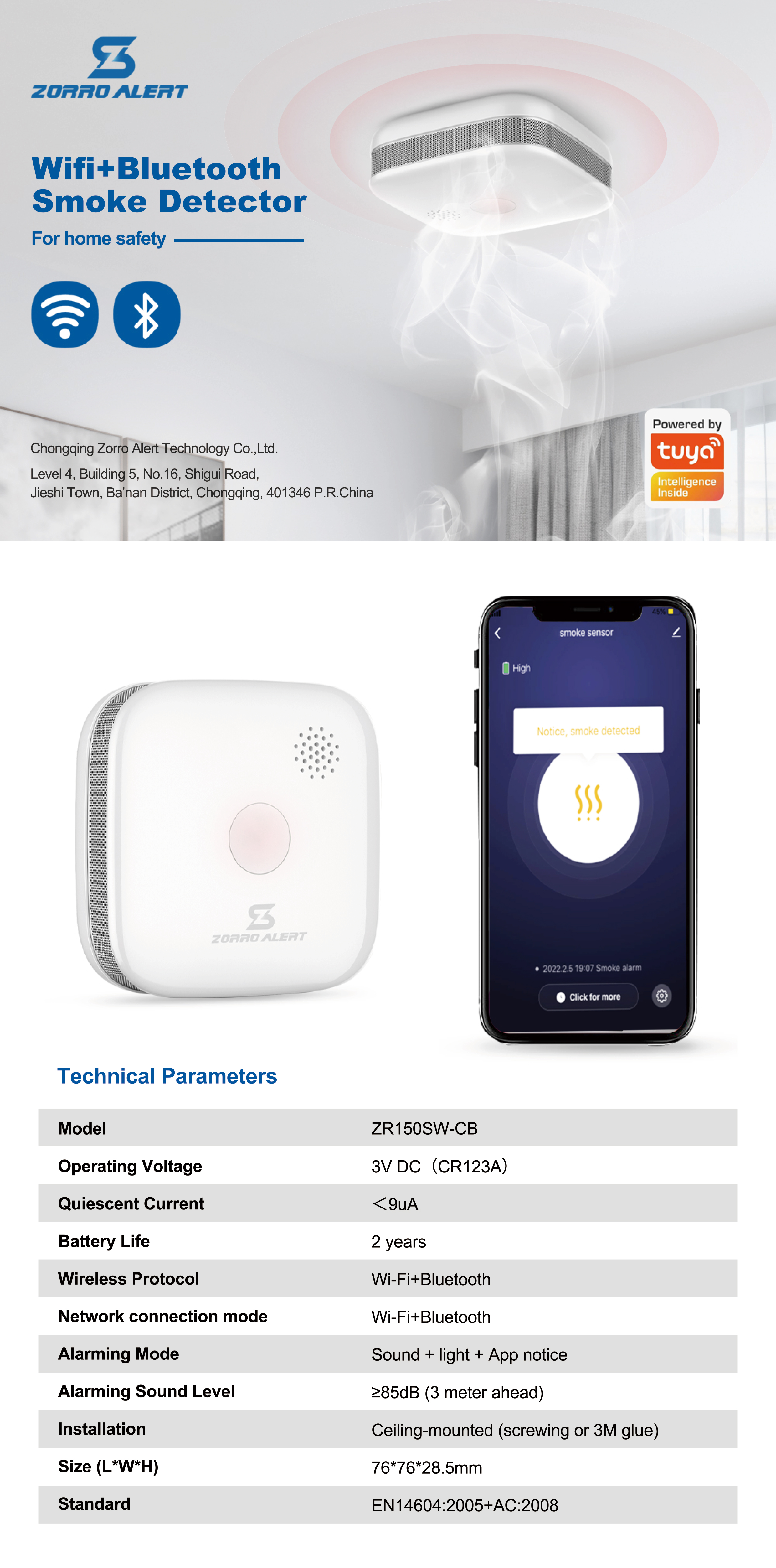

Tuya WiFi Smoke Detector-ZR150SW-CB
2022-09-28
The ZR150SW-CB household WiFi photoelectric smoke alarm (alarm) detects fire by sensing smoke. When smoke in the room reaches a certain concentration, the alarm will send out sound and light warning alarm. This alarm is applicable for residential houses.
Product Features
1.Single light source detection, no false alarm due to dust, insects or moisture.
2.Professional labyrinth design, fast fire sense.
3.App notification function, check the power and operation status at any time.
4.Flame retardant plastic shell with glossy surface treatment.
5. Free cover design for cleaning.
6. Blind twist design + 3M double-sided tape for quick installation.
Technical Parameter
Model: ZR150SW-CB
Operating voltage: DC3V (CR123A)
Battery capacity: 1400mAh
Wireless protocol: WiFi + Bluetooth
Frequency range: 2.412-2.472GHz
Version: 802.11 b/g/n
RF Conducted Power: 11b:17 dBm 11g:15 dBm 11n:13 dBm
Average quiescent current: <9uA
Alarm mode: sound + light + App notification
Alarm sound level: ≥85dB (at 3m)
Operating humidity: ≤95%RH (non-condensing)
Battery life: 2 years (typical)
Operating temperature: -10℃~55
Installation: Ceiling-mounted (screw-in or 3M backed)
Size (L*W*H): 76mm*76mm*28.5mm
Standard: EN 14604:2005＋AC:2008
1.Single light source detection, no false alarm due to dust, insects or moisture.
2.Professional labyrinth design, fast fire sense.
3.App notification function, check the power and operation status at any time.
4.Flame retardant plastic shell with glossy surface treatment.
5. Free cover design for cleaning.
6. Blind twist design + 3M double-sided tape for quick installation.
Technical Parameter
Model: ZR150SW-CB
Operating voltage: DC3V (CR123A)
Battery capacity: 1400mAh
Wireless protocol: WiFi + Bluetooth
Frequency range: 2.412-2.472GHz
Version: 802.11 b/g/n
RF Conducted Power: 11b:17 dBm 11g:15 dBm 11n:13 dBm
Average quiescent current: <9uA
Alarm mode: sound + light + App notification
Alarm sound level: ≥85dB (at 3m)
Operating humidity: ≤95%RH (non-condensing)
Battery life: 2 years (typical)
Operating temperature: -10℃~55
Installation: Ceiling-mounted (screw-in or 3M backed)
Size (L*W*H): 76mm*76mm*28.5mm
Standard: EN 14604:2005＋AC:2008
